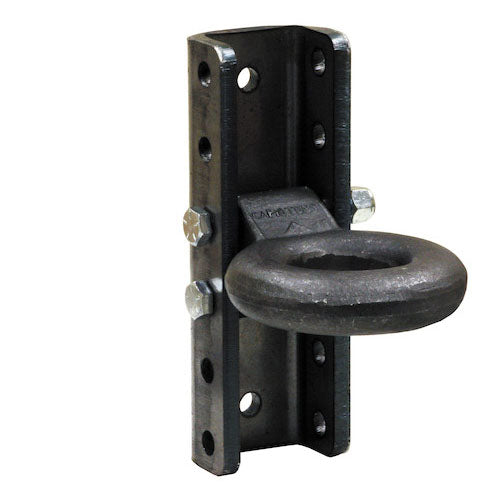

Pintle Eye with 5 Position Adjustable Channel - 20,000 lb.
- Part #: OTP-B20145
- Description: 1 (One) 10 ton capacity adjustable eye assembly that allows you to adjust the position of the tow eye for level towing. It comes with a forged steel eye (3 in. interior diameter) and a 5 position formed steel channel bracket with gussets and hardware.
- Maximum Vertical Load (M.V.L.): 2,000 lbs.
- Maximum Gross Trailer Weight (M.G.T.W.): 20,000 lbs.
- Eye Outer Diameter: 6.250"
- Mounting Holes Center To Center Vertical: 2"
- Mounting Hole Diameter: 0.656"
