Jack, Square 12/10,000 lb. Side Wind with Adjustable Spring Loaded Drop Leg (Side Pull) - Passenger Side Bolt on For Gooseneck Flatbeds

Pacific Trailer Products

$ 299.95

    • Part #: OTP-TJD-12000SP-R2-BOGN-PS

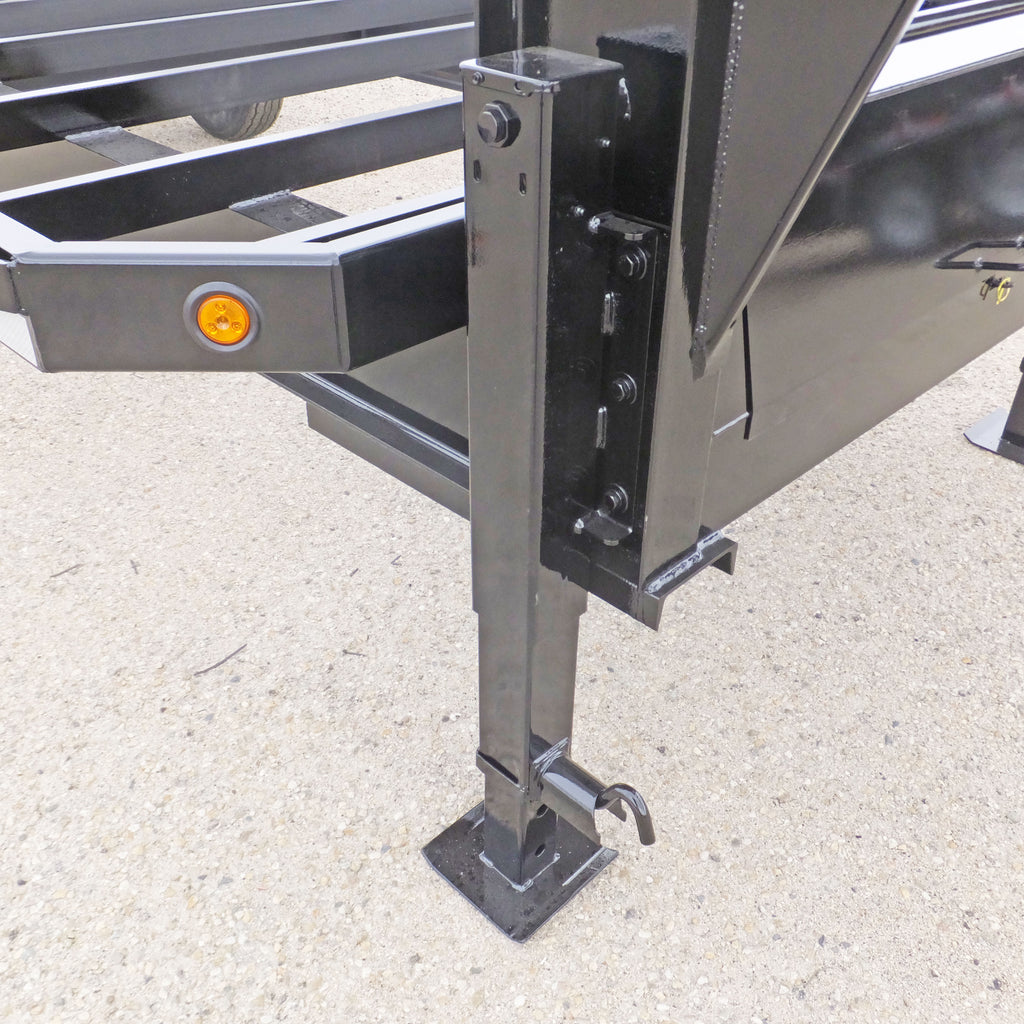

    • Description: 1 (One) Pacific Trailer Products bolt-on 12k support/10K lift side wind square jack with side pull spring loaded adjustable drop foot. Heavy duty 4" square outer tube with black primer finish. Black finish inner tube and spring loaded drop leg that can be adjusted to multiple positions. Jack includes bolt-on heavy duty tube handle and weld on handle holder.
    • OEM: This jack is direct bolt on (passenger side) for SRTC/C&B Gooseneck trailer models with bolt-on jacks.
    • Specs:
      • 28" Retracted
      • 40.25" Extended
      • Crank Travel: 12.25"
      • Drop-leg Travel: 13.5"
      • Lift: 25.75"
      • Lift Capacity: Up to 10,000 lbs.
      • Support Capacity: Up to 12,000 lbs.
      • Drive pin diameter: 1" with 3/8" diameter mounting hole
      • Footplate dimensions: 8-1/4" long x 8" wide
