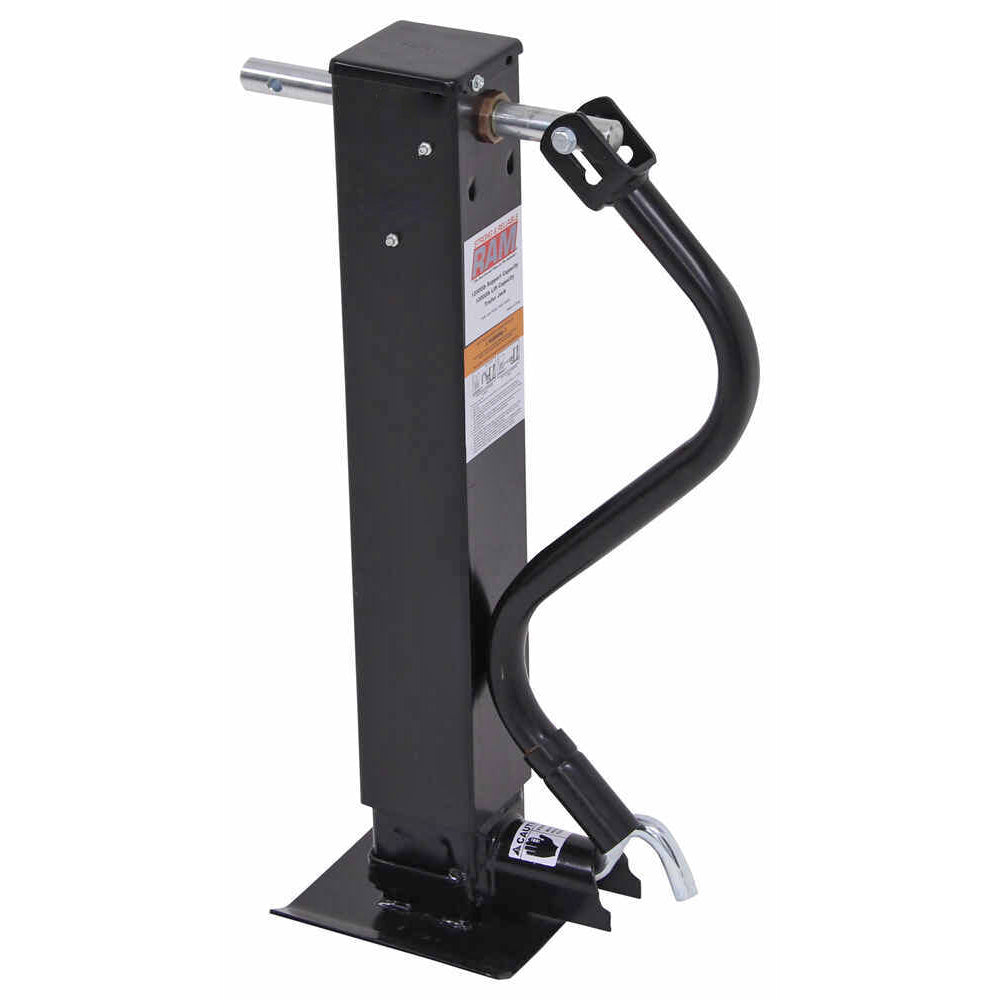

Jack, Square 12,000 lb. Side Wind with Adjustable Spring Loaded Drop Leg (Side Pull) - Direct Weld
- Part #: OTP-TJD-12000SP-R2
- Description: 1 (One) Pacific Trailer Products direct weld 12K side wind square jack with side pull spring loaded adjustable drop foot. Heavy duty 4" square outer tube with black primer finish. Black finish inner tube and spring loaded drop leg that can be adjusted to multiple positions. Jack includes bolt-on heavy duty tube handle and weld on handle holder.
- 28" Retracted
- 40.25" Extended
- Crank Travel: 12.25"
- Drop-leg Travel: 13.5"
- Lift: 25.75"
- Lift Capacity: Up to 10,000 lbs.
- Support Capacity: Up to 12,000 lbs.
- Drive pin diameter: 1" with 3/8" diameter mounting hole
- Footplate dimensions: 8-1/4" long x 8" wide
